SIMPLEPOLYGONSYMBOL  Examples

Used in:  CONFIG   REQUEST   RESPONSE
Servers:  Image   Feature   ArcMap
Parent elements:  EXACT   OBJECT   OTHER   POLYGON   RANGE   SIMPLERENDERER

<SIMPLEPOLYGONSYMBOL Attribute Description Table


     When using ArcMap Server:
     boundary ="true | false"  [true]
     boundarycolor ="0,0,0 - 255,255,255"  [0,0,0]
     boundarytype ="solid"  [solid]
     boundarywidth ="1 - NNN"  [1]
     fillcolor ="0,0,0 - 255,255,255"  [0,200,0]
     fillinterval ="2 - NNN"  [6]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical"  [solid]

     When using Image or Feature Server:
     antialiasing ="true | false"  [false]
     boundary ="true | false"  [true]
     boundarycaptype ="butt | round | square"  [butt]
     boundarycolor ="0,0,0 - 255,255,255"  [0,0,0]
     boundaryjointype ="round | miter | bevel"  [round]
     boundarytransparency ="0.0 - 1.0"  [1]
     boundarytype ="solid | dash | dot | dash_dot | dash_dot_dot"  [solid]
     boundarywidth ="1 - NNN"  [1]
     fillcolor ="0,0,0 - 255,255,255"  [0,200,0]
     fillinterval ="2 - NNN"  [6]
     filltransparency ="0.0 - 1.0"  [1]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical | gray | lightgray | darkgray"  [solid]
     overlap ="true | false"  [true]
     transparency ="0.0 - 1.0"  [no default]
>

     No Child Elements
</SIMPLEPOLYGONSYMBOL >


Description:


Restrictions:


Notes:


Attribute Descriptions for SIMPLEPOLYGONSYMBOL:

Attribute Usage Back to Top
antialiasing Used to make edges of labels and symbols smoother. When set to "true", antialiasing is active. Note that the time to generate a map may significantly increase when antialiasing is turned on.
boundary Turns boundary on or off.
boundarycaptype Boundary end style.
boundarycolor Boundary color using RGB values.

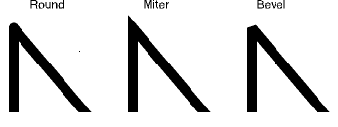

boundaryjointype Boundary join style.
boundarytransparency Value to set percentage of transparency for the polygon boundaries. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.
boundarytype Boundary type.
boundarywidth Boundary width.
fillcolor Fill color using RGB values.
fillinterval Distance between lines for hatch fills.
filltransparency Value to set percentage of transparency for the polygon fill. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.
filltype Symbol fill type.
overlap Determines if labels can overlap this symbol. When "true", labels can overlap. When "false", labels will not overlap the symbol. If labels are not drawing as expected, check if overlap is set to "false" for this symbol or any other symbol in the ArcIMS service.
transparency Value to set percentage of transparency. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.


Examples for SIMPLEPOLYGONSYMBOL:

Example 1: Back to Top
<?xml version="1.0" encoding="UTF-8"?>
<ARCXML version="1.1">
  <CONFIG>
    <ENVIRONMENT>
      <LOCALE country="US" language="en" variant="" />
      <UIFONT color="0,0,0" name="Arial" size="12" style="regular" />
      <SCREEN dpi="96" />
    </ENVIRONMENT>
    <MAP>
      <PROPERTIES>
        <ENVELOPE minx="-180" miny="-90" maxx="180" maxy="90" name="Initial_Extent" />
         <MAPUNITS units="decimal_degrees" />
      </PROPERTIES>
      <WORKSPACES>
         <SHAPEWORKSPACE name="shp_ws-0" directory="<path to WORLD ESRIDATA>"/>
      </WORKSPACES>
      <LAYER type="featureclass" name="CNTRY94" visible="true" id="0">
        <DATASET name="CNTRY94" type="polygon" workspace="shp_ws-0" />
        <SIMPLERENDERER>
          <SIMPLEPOLYGONSYMBOL antialiasing="true" fillcolor="255,0,0" fillinterval="8" filltype="diagcross" filltransparency="0.6" boundarywidth="4" boundarycolor="64,64,0" boundarytype="dash_dot_dot" boundarycaptype="round" boundaryjointype="bevel" boundarytransparency="0.6" boundary="true" overlap="true" />
        </SIMPLERENDERER>
      </LAYER>
    </MAP>
  </CONFIG>
</ARCXML>
