SIMPLEPOLYGONSYMBOL  Examples

Used in:  CONFIG   REQUEST   RESPONSE
Servers:  Image   Feature   ArcMap
Parent elements:  EXACT   OBJECT   OTHER   POLYGON   RANGE   SIMPLERENDERER

<SIMPLEPOLYGONSYMBOL Attribute Description Table


     When using ArcMap Server:
     boundary ="true | false"  [true]
     boundarycolor ="0,0,0 - 255,255,255"  [0,0,0]
     boundarytype ="solid"  [solid]
     boundarywidth ="1 - NNN"  [1]
     fillcolor ="0,0,0 - 255,255,255"  [0,200,0]
     fillinterval ="2 - NNN"  [6]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical"  [solid]

     When using Image or Feature Server:
     antialiasing ="true | false"  [false]
     boundary ="true | false"  [true]
     boundarycaptype ="butt | round | square"  [butt]
     boundarycolor ="0,0,0 - 255,255,255"  [0,0,0]
     boundaryjointype ="round | miter | bevel"  [round]
     boundarytransparency ="0.0 - 1.0"  [1]
     boundarytype ="solid | dash | dot | dash_dot | dash_dot_dot"  [solid]
     boundarywidth ="1 - NNN"  [1]
     fillcolor ="0,0,0 - 255,255,255"  [0,200,0]
     fillinterval ="2 - NNN"  [6]
     filltransparency ="0.0 - 1.0"  [1]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical | gray | lightgray | darkgray"  [solid]
     overlap ="true | false"  [true]
     transparency ="0.0 - 1.0"  [no default]
>

     No Child Elements
</SIMPLEPOLYGONSYMBOL >


Description:


Restrictions:


Notes:


Attribute Descriptions for SIMPLEPOLYGONSYMBOL:

Attribute Usage Back to Top
antialiasing 1 Used to make edges of labels and symbols smoother. When set to "true", antialiasing is active. Note that the time to generate a map may significantly increase when antialiasing is turned on.
boundary 2 Turns boundary on or off.
boundarycaptype 3 Boundary end style.
boundarycolor 4 Boundary color using RGB values.

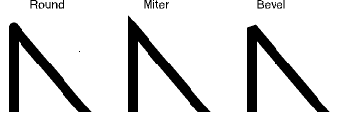

boundaryjointype 5 Boundary join style.
boundarytransparency 6 Value to set percentage of transparency for the polygon boundaries. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.
boundarytype 7 Boundary type.
boundarywidth 8 Boundary width.
fillcolor 9 Fill color using RGB values.
fillinterval 10 Distance between lines for hatch fills.
filltransparency 11 Value to set percentage of transparency for the polygon fill. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.
filltype 12 Symbol fill type.
overlap 13 Determines if labels can overlap this symbol. When "true", labels can overlap. When "false", labels will not overlap the symbol. If labels are not drawing as expected, check if overlap is set to "false" for this symbol or any other symbol in the ArcIMS service.
transparency 14 Value to set percentage of transparency. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.


Examples for SIMPLEPOLYGONSYMBOL:

Example 1: Back to Top
<?xml version="1.0" encoding="UTF-8"?>
<ARCXML version="1.1">
  <CONFIG>
    <ENVIRONMENT>
      <LOCALE country="US" language="en" variant="" />
      <UIFONT color="0,0,0" name="Arial" size="12" style="regular" />
      <SCREEN dpi="96" />
    </ENVIRONMENT>
    <MAP>
      <PROPERTIES>
        <ENVELOPE minx="-180" miny="-90" maxx="180" maxy="90" name="Initial_Extent" />
         <MAPUNITS units="decimal_degrees" />
      </PROPERTIES>
      <WORKSPACES>
         <SHAPEWORKSPACE name="shp_ws-0" directory="<path to WORLD ESRIDATA>"/>
      </WORKSPACES>
      <LAYER type="featureclass" name="CNTRY94" visible="true" id="0">
        <DATASET name="CNTRY94" type="polygon" workspace="shp_ws-0" />
        <SIMPLERENDERER>
          <SIMPLEPOLYGONSYMBOL antialiasing="true" fillcolor="255,0,0" fillinterval="8" filltype="diagcross" filltransparency="0.6" boundarywidth="4" boundarycolor="64,64,0" boundarytype="dash_dot_dot" boundarycaptype="round" boundaryjointype="bevel" boundarytransparency="0.6" boundary="true" overlap="true" />
        </SIMPLERENDERER>
      </LAYER>
    </MAP>
  </CONFIG>
</ARCXML>
