SIMPLELINESYMBOL  Examples

Used in:  CONFIG   REQUEST   RESPONSE
Servers:  Image   Feature   ArcMap
Parent elements:  EXACT   LINE   OBJECT   OTHER   POLYGON   RANGE   SIMPLERENDERER

<SIMPLELINESYMBOL Attribute Description Table


     When using ArcMap Server:
     color ="0,0,0 - 255,255,255"  [0,0,0]
     type ="solid"  [solid]
     width ="1 - NNN"  [1]

     When using Image or Feature Server:
     antialiasing ="true | false"  [false]
     captype ="butt | round | square"  [butt]
     color ="0,0,0 - 255,255,255"  [0,0,0]
     jointype ="round | miter | bevel"  [round]
     overlap ="true | false"  [true]
     transparency ="0.0 - 1.0"  [1.0]
     type ="solid | dash | dot | dash_dot | dash_dot_dot"  [solid]
     width ="1 - NNN"  [1]
>

     No Child Elements
</SIMPLELINESYMBOL >


Description:


Restrictions:


Notes:


Attribute Descriptions for SIMPLELINESYMBOL:

Attribute Usage Back to Top
antialiasing Used to make edges of labels and symbols smoother. When set to "true", antialiasing is active. Note that the time to generate a map may significantly increase when antialiasing is turned on.
captype Line end style.

color Symbol color using RGB values.

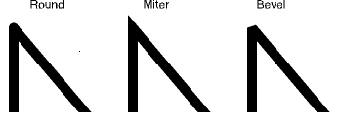

jointype Line join style.

overlap Determines if labels can overlap this symbol. When "true", labels can overlap. When "false", labels will not overlap the symbol. If labels are not drawing as expected, check if overlap is set to "false" for this symbol or any other symbol in the ArcIMS service.
transparency Value to set percentage of transparency. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent.
type Line type.
width Line width in pixels.


Examples for SIMPLELINESYMBOL:

Example 1: Back to Top
<?xml version="1.0" encoding="UTF-8"?>
<ARCXML version="1.1">
  <CONFIG>
    <ENVIRONMENT>
      <LOCALE country="US" language="en" variant="" />
      <UIFONT color="0,0,0" name="Arial" size="12" style="regular" />
      <SCREEN dpi="96" />
    </ENVIRONMENT>
    <MAP>
      <PROPERTIES>
        <ENVELOPE minx="-178.215027" miny="18.924782" maxx="-66.969849" maxy="71.406647" name="Initial_Extent" />
        <MAPUNITS units="decimal_degrees" />
        <FILTERCOORDSYS id="4326" />
        <FEATURECOORDSYS id="4326"/>
      </PROPERTIES>
      <WORKSPACES>
         <SHAPEWORKSPACE name="shp_ws-0" directory="<path to USA ESRIDATA>"/>
      </WORKSPACES>
      <LAYER type="featureclass" name="ROADS" visible="true" id="1">
        <DATASET name="ROADS" type="line" workspace="shp_ws-0" />
        <SIMPLERENDERER>
          <SIMPLELINESYMBOL transparency="0.7" type="dash" width="1" color="127,227,27" antialiasing="false" overlap="true" captype="square" jointype="miter" />
        </SIMPLERENDERER>
      </LAYER>
    </MAP>
  </CONFIG>
</ARCXML>

Example 2: Using three line symbols to create a complex line symbol. Back to Top
<?xml version="1.0" encoding="UTF-8"?>
<ARCXML version="1.1">
  <CONFIG>
    <ENVIRONMENT>
      <LOCALE country="US" language="en" variant="" />
      <UIFONT color="0,0,0" name="Arial" size="12" style="regular" />
      <SCREEN dpi="96" />
    </ENVIRONMENT>
    <MAP>
      <PROPERTIES>
        <ENVELOPE minx="-178.215027" miny="18.924782" maxx="-66.969849" maxy="71.406647" name="Initial_Extent" />
        <MAPUNITS units="decimal_degrees" />
        <FILTERCOORDSYS id="4326" />
        <FEATURECOORDSYS id="4326"/>
      </PROPERTIES>
      <WORKSPACES>
         <SHAPEWORKSPACE name="shp_ws-0" directory="<path to USA ESRIDATA>"/>
      </WORKSPACES>
      <LAYER type="featureclass" name="ROADS" visible="true" id="2">
        <DATASET name="ROADS" type="line" workspace="shp_ws-0" />
        <GROUPRENDERER>
          <SIMPLERENDERER>
            <SIMPLELINESYMBOL transparency="1.0" type="solid" width="8" captype="round" jointype="round" color="0,0,0" />
          </SIMPLERENDERER>
          <SIMPLERENDERER>
            <SIMPLELINESYMBOL transparency="1.0" type="solid" width="6" captype="round" jointype="round" color="255,0,0" />
          </SIMPLERENDERER>
          <SIMPLERENDERER>
            <SIMPLELINESYMBOL transparency="1.0" type="solid" width="1" captype="round" jointype="round" color="255,255,255" />
          </SIMPLERENDERER>
        </GROUPRENDERER>
      </LAYER>
    </MAP>
  </CONFIG>
</ARCXML>
