SIMPLEPOLYGONSYMBOL

SIMPLEPOLYGONSYMBOL

Used in: CONFIG   REQUEST   RESPONSE
Servers: Image   Feature   ArcMap
Parent elements: EXACT   OBJECT   OTHER   POLYGON   RANGE   SIMPLERENDERER

<SIMPLEPOLYGONSYMBOL

Attribute Description Table

     When using ArcMap Server:
     boundary ="true | false" [true]
     boundarycolor ="0,0,0 - 255,255,255" [0,0,0]
     boundarytype ="solid" [solid]
     boundarywidth ="1 - NNN" [1]
     fillcolor ="0,0,0 - 255,255,255" [0,200,0]
     fillinterval ="2 - NNN" [6]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical" [solid]

     When using Image or Feature Server:
     antialiasing ="true | false" [false]
     boundary ="true | false" [true]
     boundarycaptype ="butt | round | square" [butt]
     boundarycolor ="0,0,0 - 255,255,255" [0,0,0]
     boundaryjointype ="round | miter | bevel" [round]
     boundarytransparency ="0.0 - 1.0" [1]
     boundarytype ="solid | dash | dot | dash_dot | dash_dot_dot" [solid]
     boundarywidth ="1 - NNN" [1]
     fillcolor ="0,0,0 - 255,255,255" [0,200,0]
     fillinterval ="2 - NNN" [6]
     filltransparency ="0.0 - 1.0" [1]
     filltype ="solid | bdiagonal | fdiagonal | cross | diagcross | horizontal | vertical | gray | lightgray | darkgray" [solid]
     overlap ="true | false" [true]
     transparency ="0.0 - 1.0" [no default]
>

     No Child Elements
</SIMPLEPOLYGONSYMBOL >

Description:

Symbol for polygon features.

Restrictions:

Overlap is valid only for Image Services. It is ignored when using Feature Services.
In ArcMap Image Services, symbol is valid only in acetate layers.

Notes:

For more complex boundary symbols, SIMPLELINESYMBOL can be used on polygon layers.
Transparency takes precedence over filltransparency and boundarytransparency. If transparency is present, the latter two attributes are ignored.
To make both the fill and boundary of a polygon transparent, set filltransparency="0.0" and boundarytransparency="0.0". Do not use transparency.

Attribute Descriptions for SIMPLEPOLYGONSYMBOL:

Attribute	Usage	Back to Top
antialiasing	Used to make edges of labels and symbols smoother. When set to "true", antialiasing is active. Note that the time to generate a map may significantly increase when antialiasing is turned on.
boundary	Turns boundary on or off.
boundarycaptype	Boundary end style.
boundarycolor	Boundary color using RGB values.

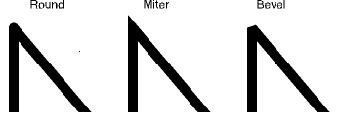

boundaryjointype	Boundary join style.
boundarytransparency	Value to set percentage of transparency for the polygon boundaries. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent. Ignored if transparency attribute is present.
boundarytype	Boundary type.
boundarywidth	Boundary width.
fillcolor	Fill color using RGB values.
fillinterval	Distance between lines for hatch fills.
filltransparency	Value to set percentage of transparency for the polygon fill. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent. Ignored if transparency attribute is present.
filltype	Symbol fill type.
overlap	Determines if labels can overlap this symbol. When "true", labels can overlap. When "false", labels will not overlap the symbol. If labels are not drawing as expected, check if overlap is set to "false" for this symbol or any other symbol in the ArcIMS service.
transparency	Value to set percentage of transparency. 1.0 is 0 percent transparent. 0.0 is 100 percent transparent. Overrides any values set for boundarytransparency or filltransparency.

Examples for SIMPLEPOLYGONSYMBOL:

Example 1:

Back to Top

<?xml version="1.0" encoding="UTF-8"?>
<ARCXML version="1.1">
  <CONFIG>
    <ENVIRONMENT>
      <LOCALE country="US" language="en" variant="" />
      <UIFONT color="0,0,0" name="Arial" size="12" style="regular" />
      <SCREEN dpi="96" />
    </ENVIRONMENT>
    <MAP>
      <PROPERTIES>
        <ENVELOPE minx="-180" miny="-90" maxx="180" maxy="90" name="Initial_Extent" />
        <MAPUNITS units="decimal_degrees" />
        <FILTERCOORDSYS id="4326" />
        <FEATURECOORDSYS id="4326"/>
      </PROPERTIES>
      <WORKSPACES>
         <SHAPEWORKSPACE name="shp_ws-0" directory="<path to WORLD ESRIDATA>"/>
      </WORKSPACES>
      <LAYER type="featureclass" name="CNTRY94" visible="true" id="0">
        <DATASET name="CNTRY94" type="polygon" workspace="shp_ws-0" />
        <SIMPLERENDERER>
          <SIMPLEPOLYGONSYMBOL antialiasing="true" fillcolor="255,0,0" fillinterval="8" filltype="diagcross" filltransparency="0.6" boundarywidth="4" boundarycolor="64,64,0" boundarytype="dash_dot_dot" boundarycaptype="round" boundaryjointype="bevel" boundarytransparency="0.6" boundary="true" overlap="true" />
        </SIMPLERENDERER>
      </LAYER>
    </MAP>
  </CONFIG>
</ARCXML>
